Ecobee Premium Contoured Drywall Niche
Ecobee Premium Contoured Drywall Niche
Product details

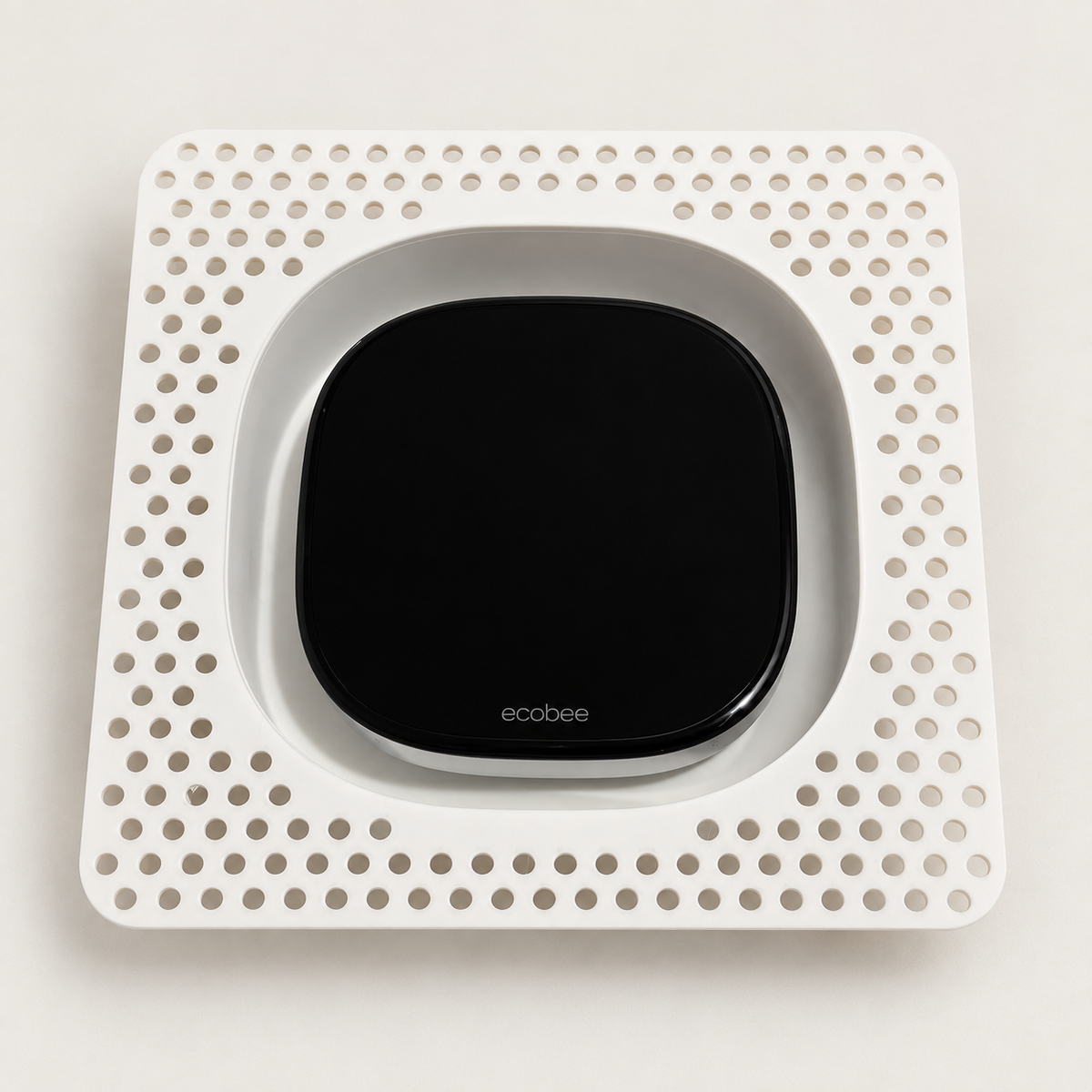

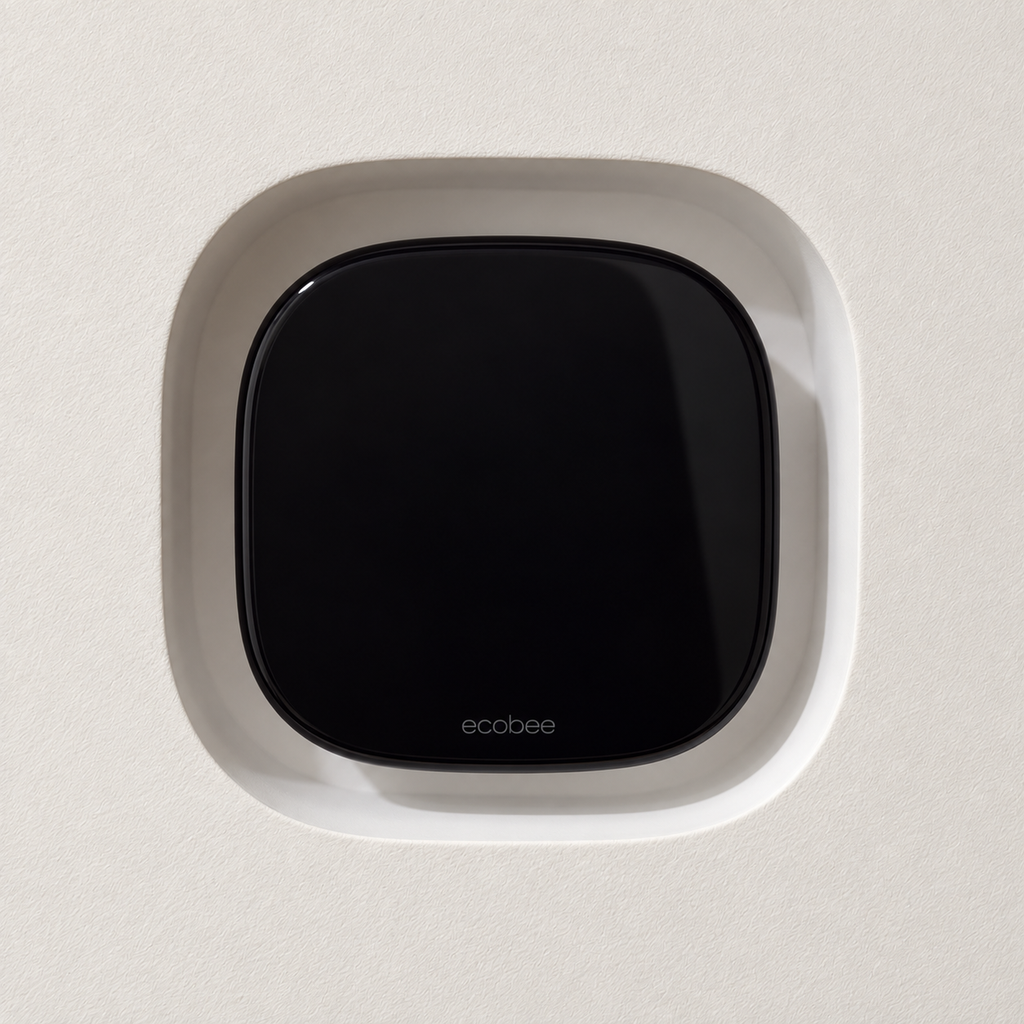

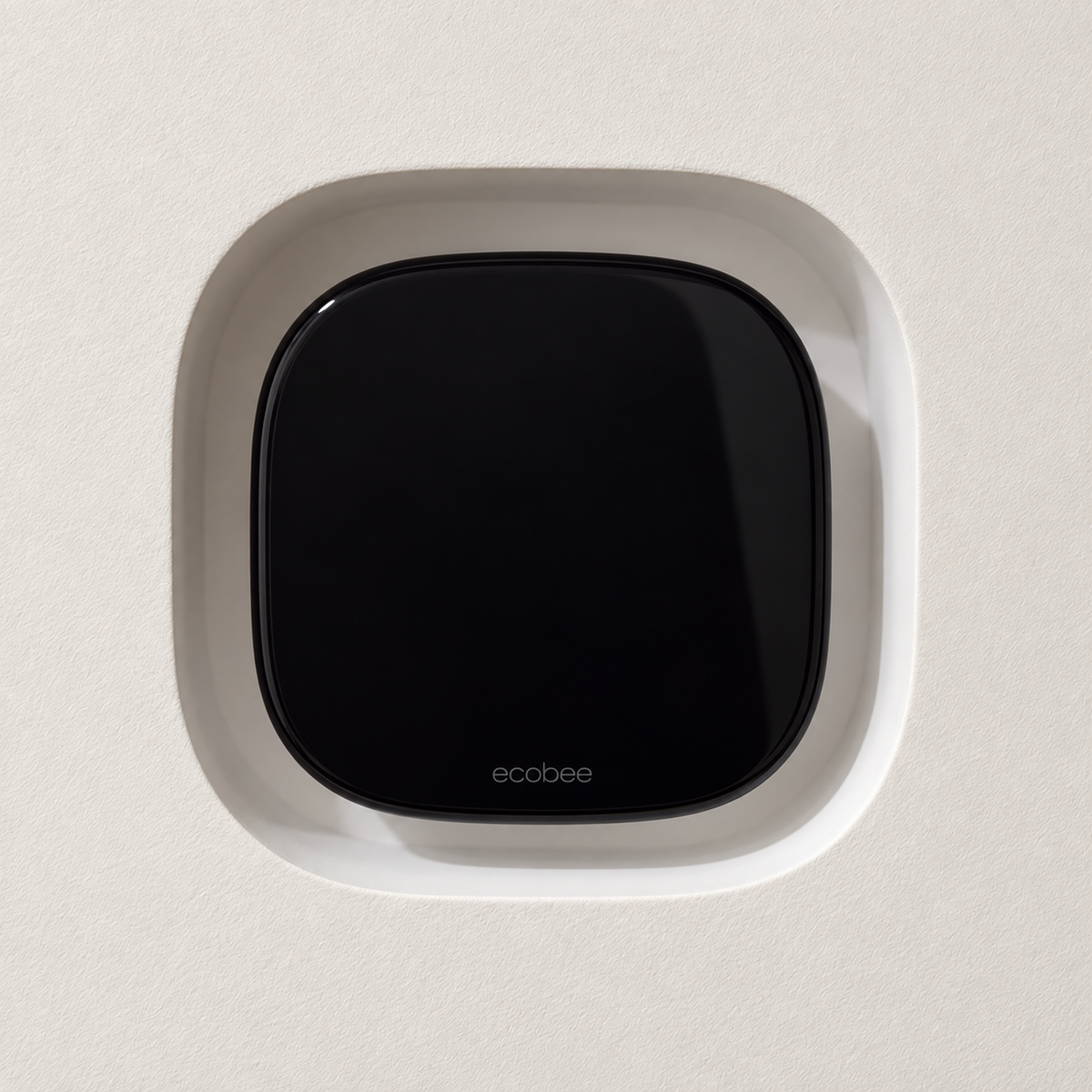

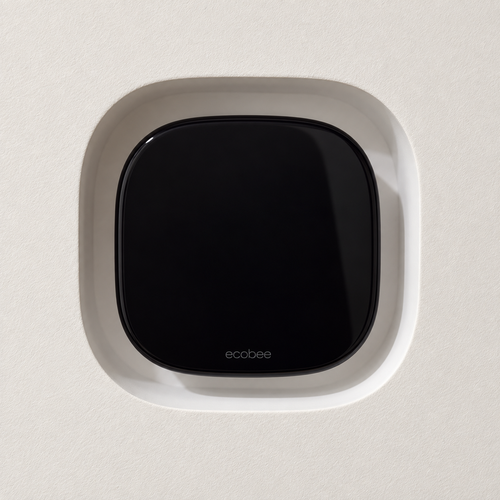

A contoured recessed drywall niche shaped for the ecobee Smart Thermostat Premium. Its rounded-square opening follows the thermostat’s profile, while the integrated perforated mud-in flange finishes into the surrounding wall for a clean, trimless installation.
Made in white with a centered ¾″ wiring opening. The thermostat is shown for fit and is not included.
Dimensions
- Maximum clear opening 5.09″ W × 5.09″ H (129.29 × 129.29 mm), contoured
- Recess depth 1.36″ (34.5 mm), front bead crest to inside floor
- Recommended drywall cutout 5⅝″ × 5⅝″ square (142.875 × 142.875 mm)
- Overall mud-in flange 7″ × 7″ (177.8 × 177.8 mm)
- Overall product depth 1.48″ (37.7 mm)
- Body behind flange contact plane Approx. 1.40″ (35.45 mm), plus wiring clearance
- Wiring opening Centered ¾″ diameter (19.05 mm)
Compatibility and fit
- ecobee Smart Thermostat Premium
The contoured opening follows the Premium thermostat profile. The listed clear opening gives its maximum width and height, not a square passage. Verify the thermostat base, wiring route and wall-cavity clearance before cutting.
What’s included
One white contoured recessed niche with an integrated perforated mud-in flange and centered ¾″ wiring opening. Thermostat, wiring, mounting hardware and finishing materials are not included.
Installation overview

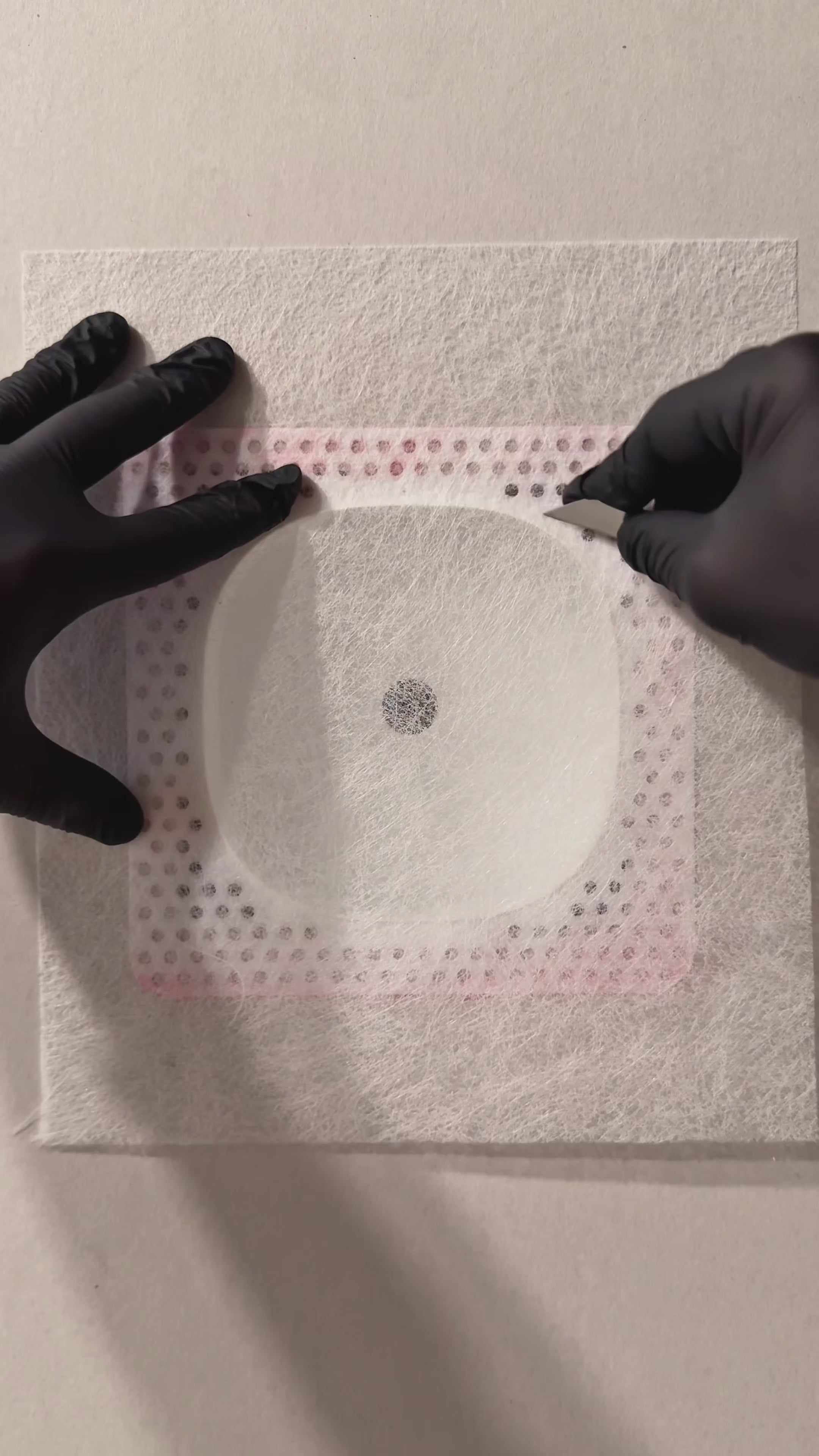

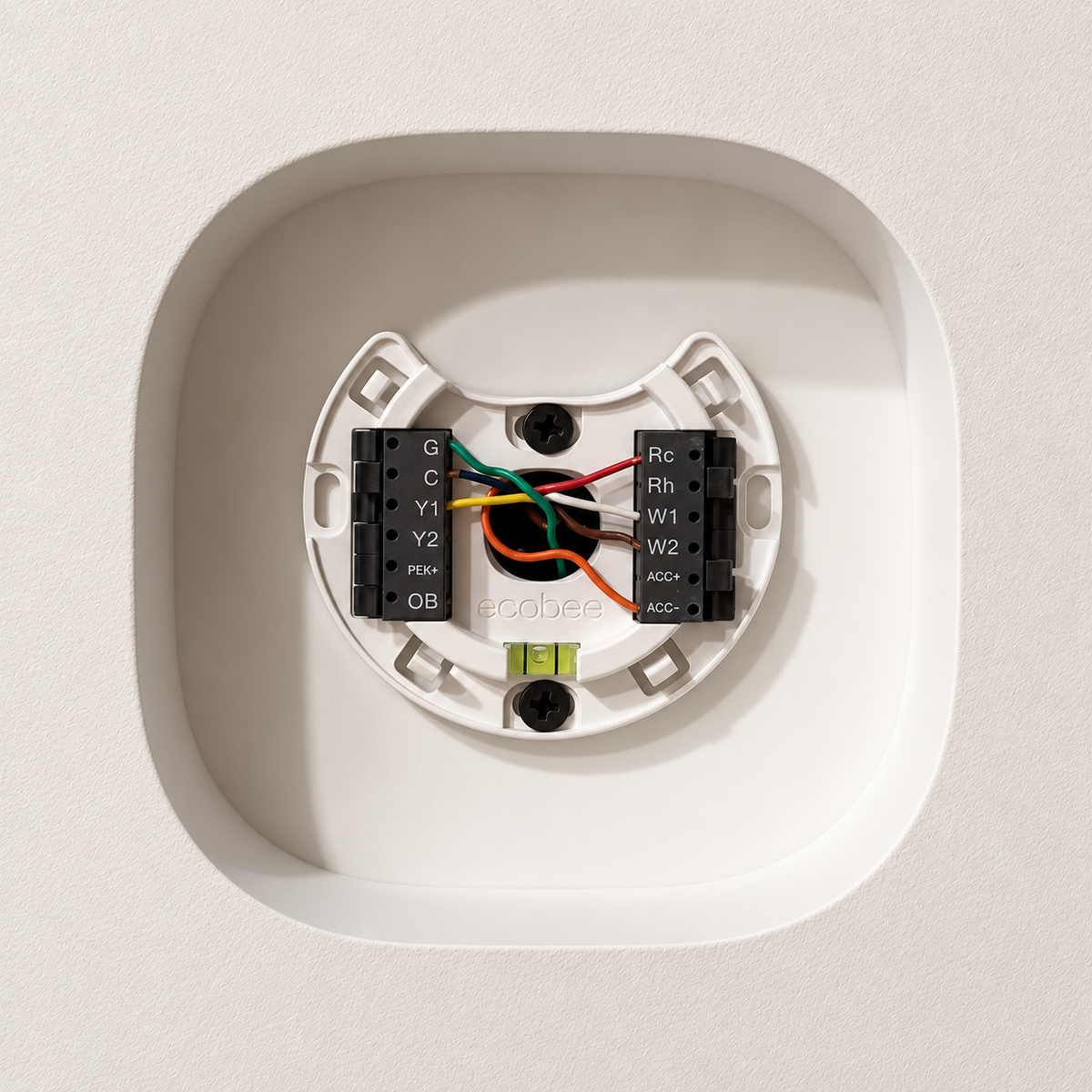

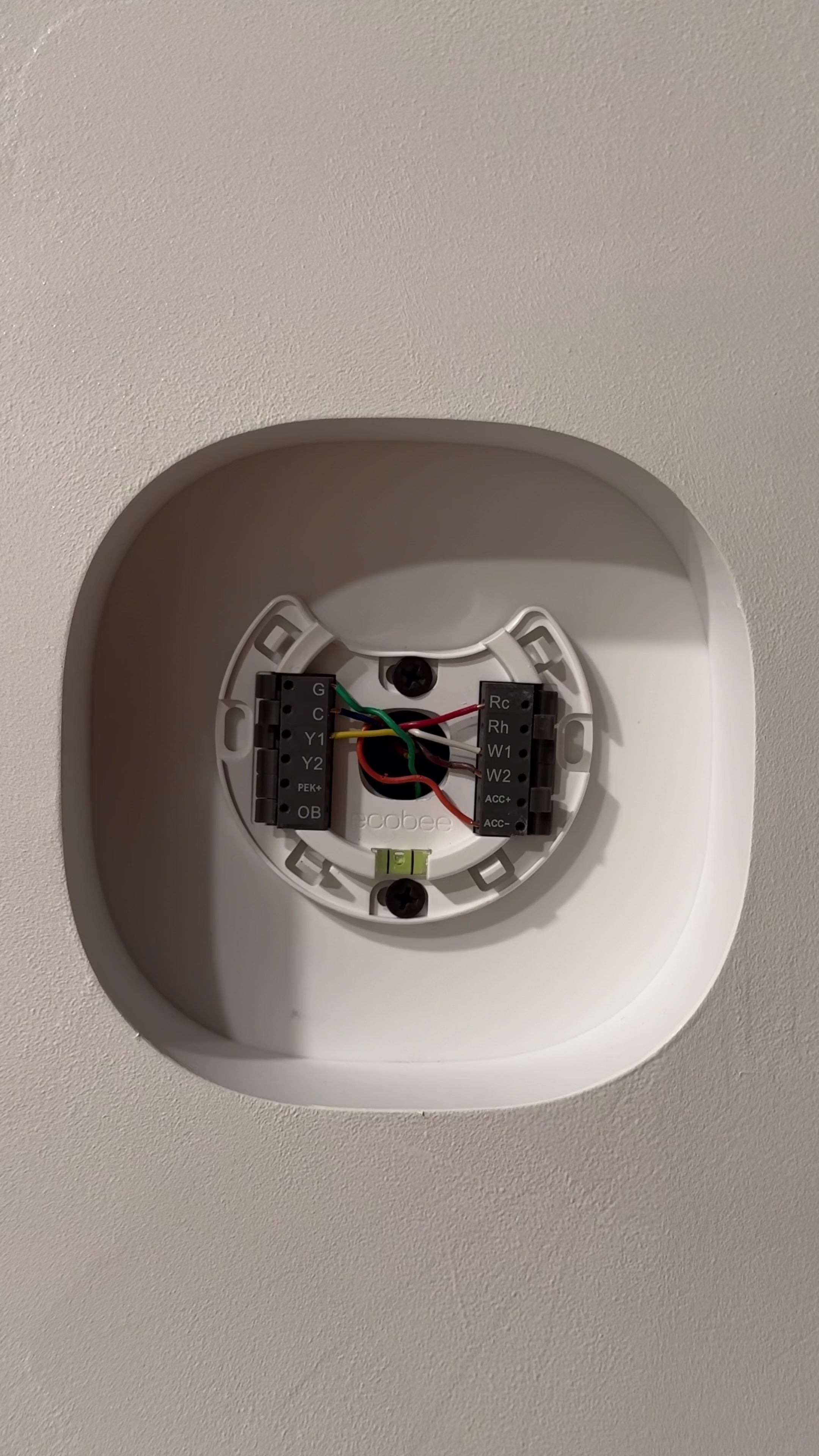

Confirm the thermostat base, wiring and wall-cavity clearance first. Cut the recommended 5⅝″ square opening and check the niche fit before finishing. Set the niche, finish the perforated flange with joint compound, then sand, prime and paint. Route wiring through the centered ¾″ opening and install the thermostat in accordance with its manufacturer’s instructions.
Use and limitations
For interior drywall use. This niche is not an electrical box or retaining bracket. Follow the thermostat manufacturer’s installation instructions and verify sensing, airflow, access and clearance requirements. No thermostat-manufacturer approval or performance certification is claimed.
Maker Is LLC is not affiliated with or endorsed by ecobee Inc. or Generac Holdings Inc.
