Cat6 Ethernet Round Wall Niche
Cat6 Ethernet Round Wall Niche
Product details

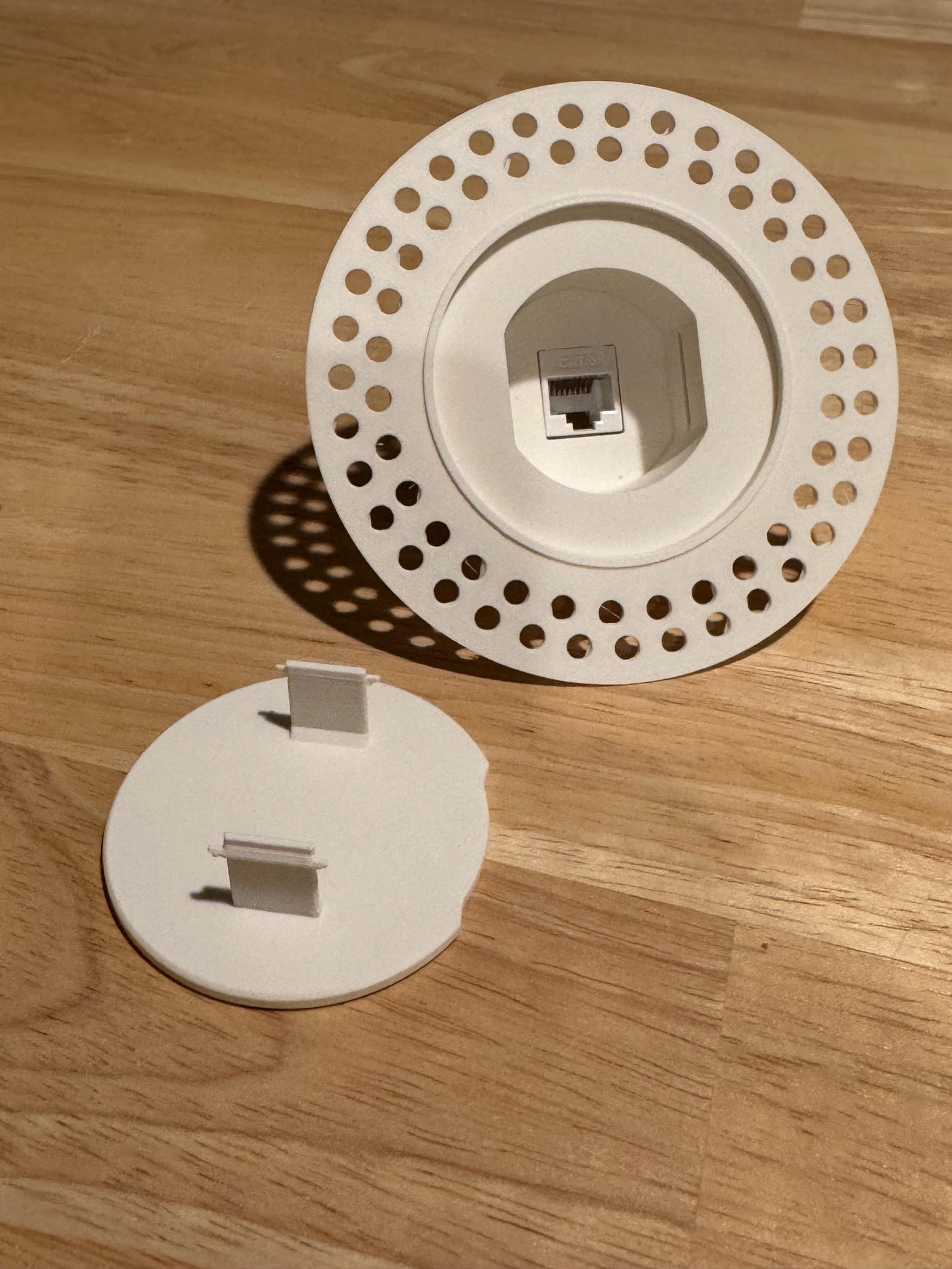

A trimless round drywall niche for a Cat6 or Ethernet connection. A compatible keystone-style jack mounts at the back of the recessed cavity, while the perforated mud-in flange finishes into the surrounding wall. Add the optional removable lid to conceal the connection when it is not in use.

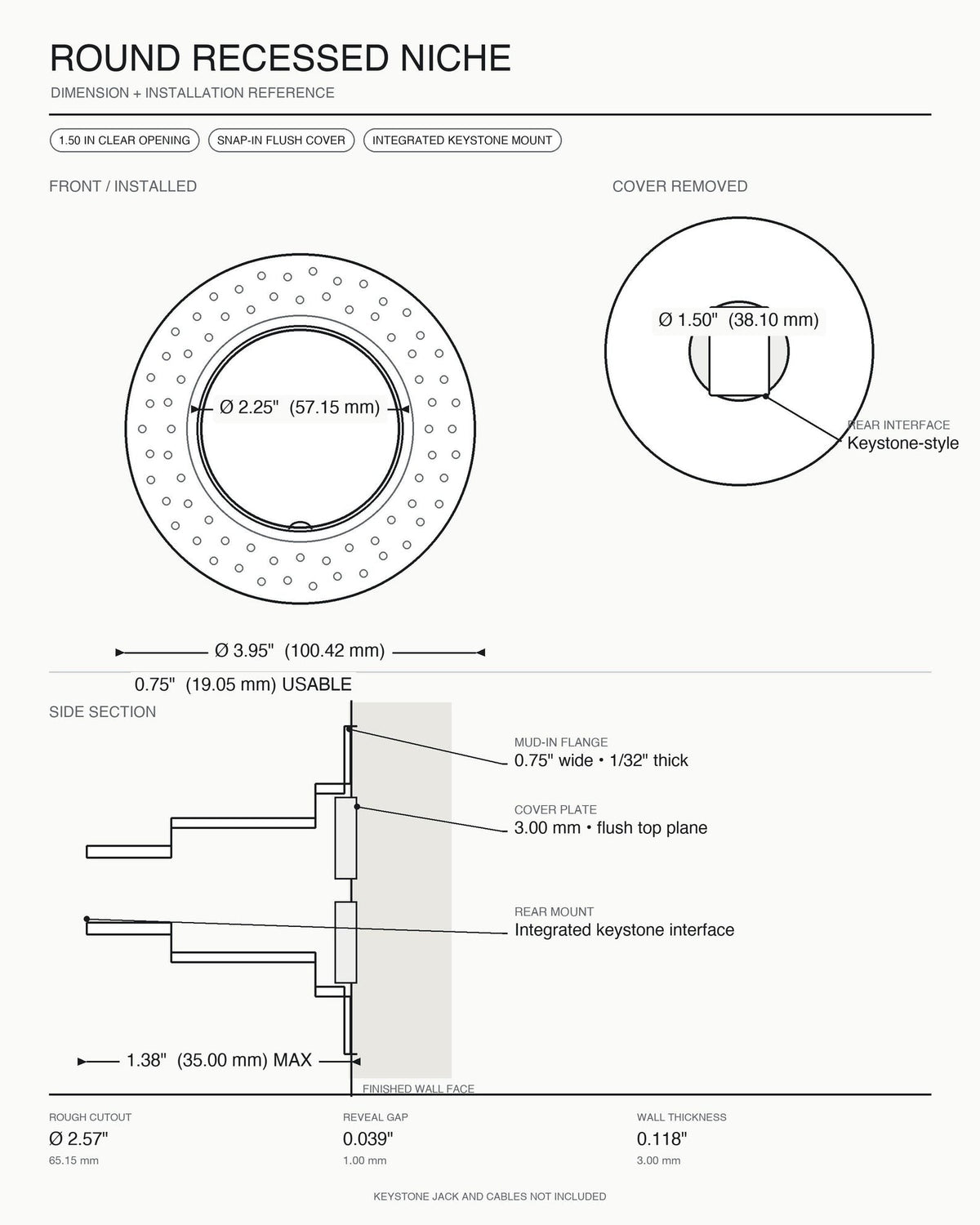

Dimensions
- Clear opening 1.50" diameter
- Usable interior depth 0.75"
- Overall mud-in frame 3.95" diameter
- Recommended rough opening Approximately 2.8"-3" diameter
- Optional lid 2.25" diameter · removable

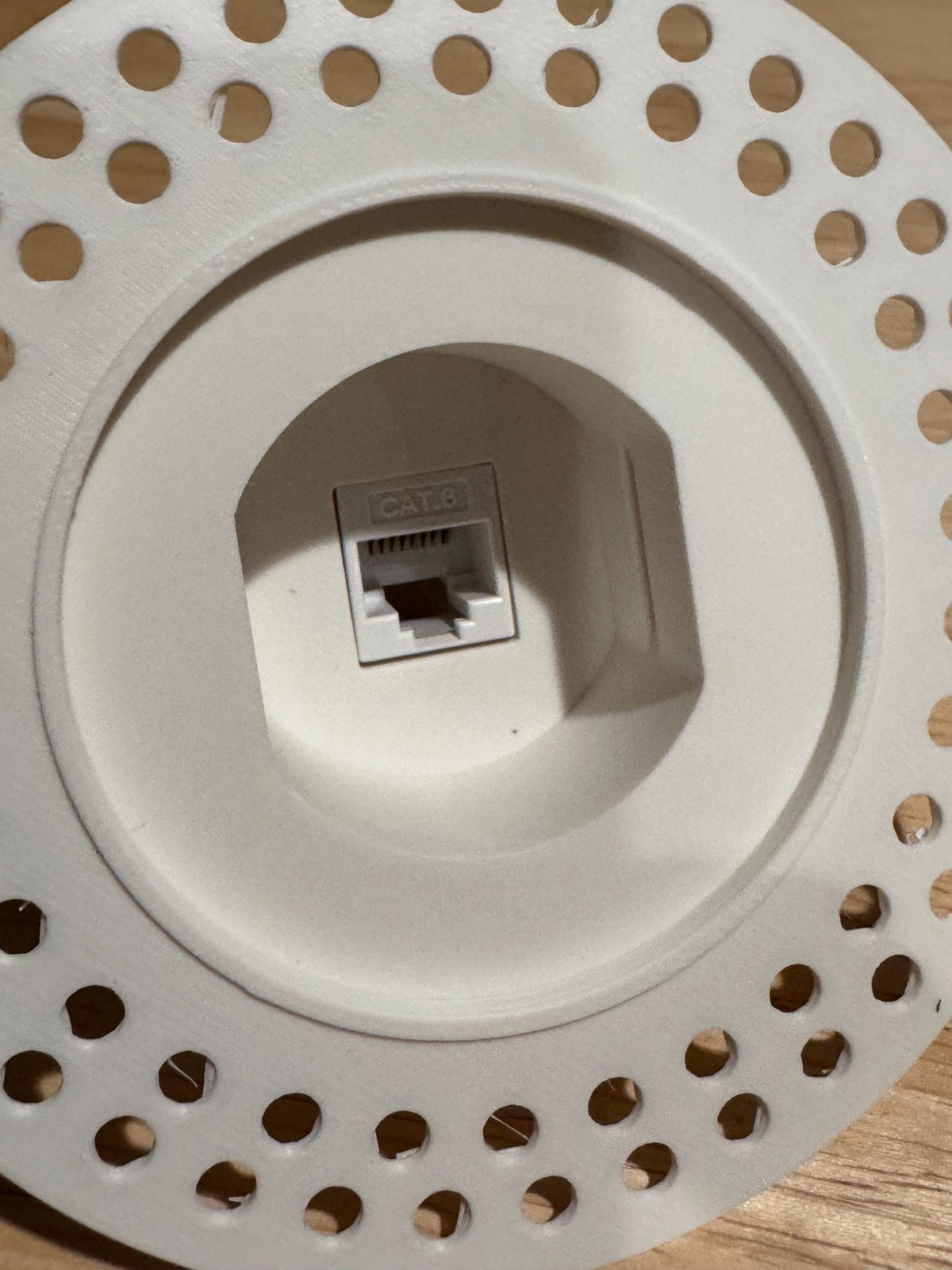

- Rear interface Compatible keystone-style jack
Compatibility and fit
Designed for a compatible keystone-style Cat6 or Ethernet jack. Confirm the jack body, connector, cable bend and wall-cavity clearance before ordering; keystone dimensions vary.
What’s included
One round recessed niche with an integrated keystone mount in the selected color. When selected, the optional configuration also includes one removable lid. Keystone jack, Ethernet cable, fasteners and finishing materials are not included.
Installation overview
Confirm jack and cable clearance before cutting. Cut the recommended opening, set the niche, finish the perforated flange with joint compound, then sand, prime and paint. Keep the lid channel and removal notch clear.
Use and limitations
Interior drywall and low-voltage data use only. This product is not an electrical junction box and is not intended for line-voltage wiring. Keystone dimensions vary, so verify compatibility before installation.
